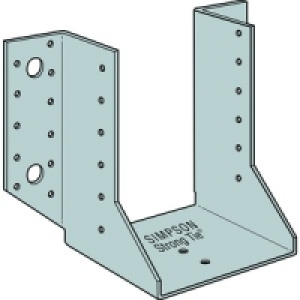

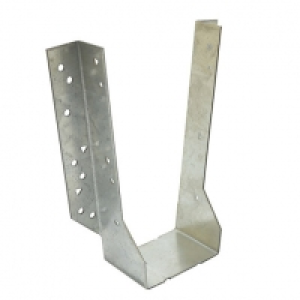

Wickes Heavy Duty Timber Hanger HU9

Heavy duty hanger designed for applications requiring additional strength For joists up to 45 x 241 to 302mm Can be sloped up or down up to 45 degrees Can be skewed left or right up to 67.5 degrees Safe working load for C16 and I-joist headers is 11.12kN providing 18 round wire nails 100mm (SKU 516018) are used in the fastener face and 6 square twist nails 30mm (SKU 516049) are used in the joist, this is the minimum number of nails used to achieve this safe working load Safe working load for Laminated Veneer Lumber headers is 12.13kN providing 18 round wire nails 100mm (SKU 516018) are used in the fastener face and 6 square twist nails 30mm (SKU 516049) are used in the joist, this is the minimum number of nails used to achieve this safe working load Safe working load for C16 and I-joist headers is 14.83kN providing 24 round wire nails 100mm (SKU 516018) are used in the fastener face and 10 square twist nails 30mm (SKU 516049) are used in the joist, this is the maximum number of nails used to achieve this safe working load Safe working load for Laminated Veneer Lumber headers is 16.16kN providing 24 smooth shank nails 100mm (SKU 516018) are used in the fastener face and 10 square twist nails 30mm (SKU 516049) are used in the joist, this is the maximum number of nails used to achieve this safe working load
