HCW80 Wireless Analogue Room Thermostat

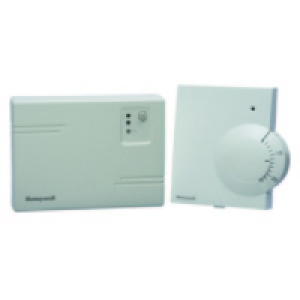

Y6330D consists of a HCW80 room temperature controller and a HC60NG receiver module. The room unit HCW80 is used for intelligent room temperature control in combination with the relay module HC60NG. It can be used to control gas and oil boilers, variety of valves and actuators or electrical heating systems Because of the simple HCW80 analogue user interface with absolute set point temperature scale the room set point temperature can be easily adjusted Reliable RF communication technology is used in the 868MHZ frequency band. The RF communication range spans to 30 metres in a residential building environment Pre-Configured Kit means the room unit HCW80 and relay module HC60NG are already teached-in (bounded) making this unit very easy to install Room unit HCW80 with simple analogue user interface with absolute set point temperature scale 10-30°C and frost protection symbol 5°C SPDT potential free switch type Operating temperature from 0 to 40°C HC60NG is 97 x 131 x 36mm (h x w x d) IP30 Rated HC60NG requires a 230V power supply and HCW80 requires 1.5V DC type LR06 AA alkaline batteries (Supplied) Low battery indicator when LED light flashes repeatedly
